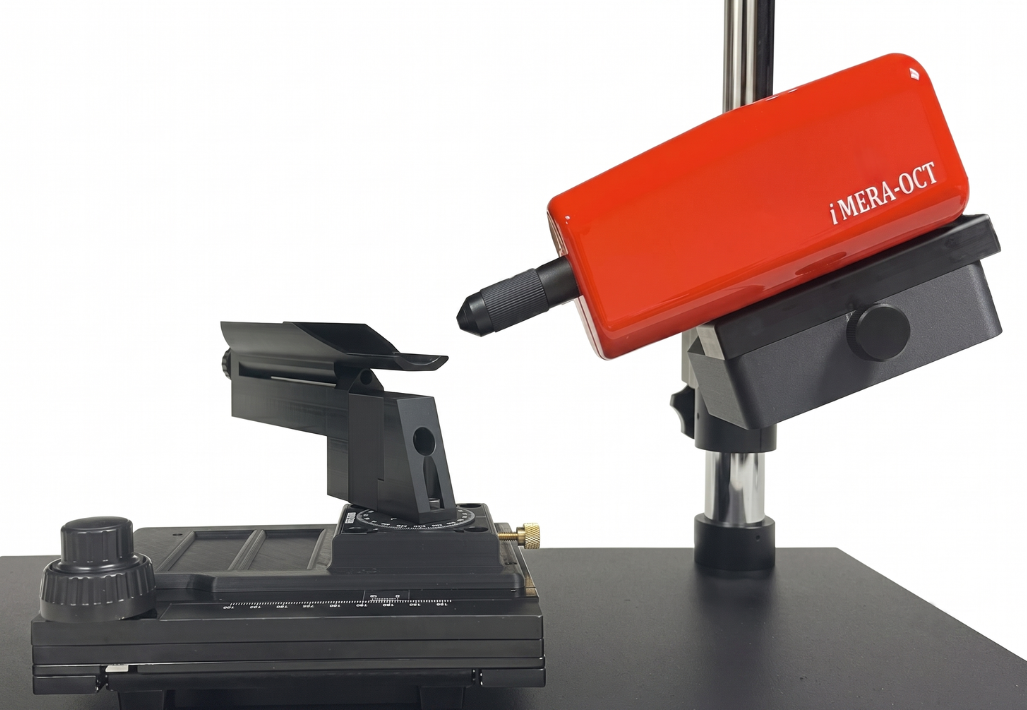

OCT camera
Spectral-domain OCT delivering 3 µm isotropic resolution at 80,000 A-scans/sec. Built for quantitative retinal layer analysis in preclinical rodent models.
Axial resolution
Scan speed
Output
Field of view
Configure your system
Every lab is different. Let's build the right system for yours.
⏱ Typical lead time: 8–12 weeks after order
Upgrading?
NEI SBIR funded. Be the first to know when it's available.
Layer-resolved imaging
Resolves NFL, IPL, INL, OPL, ONL, IS/OS, RPE with 3 μm axial resolution.
Volumetric 3D scanning
Full volumetric datasets and en face reconstructions with 3D rendering.
High-speed acquisition
80 kHz A-scan rate minimizes motion artifacts for clean B-scans.
Quantitative analysis
Layer segmentation and thickness mapping with OCTOS Expert. Export results as CSV for further analysis.
Specification
Value
Imaging modality
Spectral Domain OCT
Field of view
100°
Image resolution
3.0 × 3.0 × 3.0 μm
A-scan rate
80,000 A-scans/sec
B-scan rate
50 B-scans/sec
Center wavelength
870 nm
Scan patterns
H / V / Radial / Circular / Volume
Objective lens
Interchangeable – Mouse, Rat, Rabbit, Zebrafish; Anterior Segment (optional)
Animal stage
6-DOF motorized stage
Compatible species
Mouse, Rat, Rabbit, Zebrafish
Image format
TIFF
Acquisition software
iMera Capture
Analysis software
OCTOS Expert
Warranty
1 year standard, extended available
Wavelengths, optics, software, hardware — built for your experiment.
